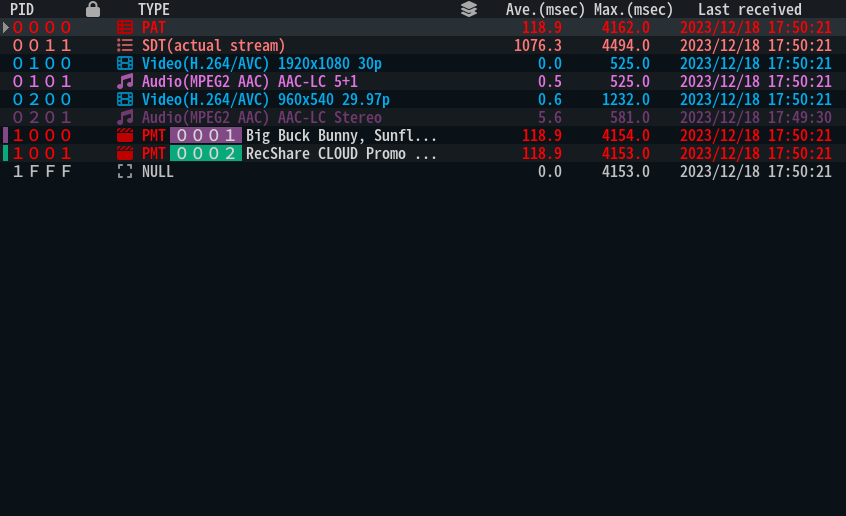

Packet Interval

Display the list of the reception intervals of each packet by PID.

Screen Items

Item	Description
PID	Display the packet ID. You can select decimal or hexadecimalin the setting.
	Displays whether scrambled or not. If scrambled, the letter will be displayed.
TYPE	Display the packet type. The packet type is determined by table_id and stream_type described in PMT.
	When the layer information of ISDB-T is added, display the assigned hierarchy.
Ave	Display the moving average of the reception interval in the last 100 packets.
Max	Display the maximum value of the receiving interval from the start of analysis to the present. The maximum value will be kept until the analysis is cleared.
Last received	Display the date and time when the last packet was received.

Operation

Function	Description
Packet Analysis	Perform packet analysis of the packet selected by the cursor.
Section Analysis	Perform section analysis of the packet selected by the cursor.
Decode	Set the service associated with the packet selected by the cursor as the target for decoding. No video is displayed when selected as decoding target for scrambled services.
Format Select	Switch the display scale of the bit rate occupancy bar graph.
PAGE	Scroll the display up one page.
PAGE	Scroll the display down one page.
