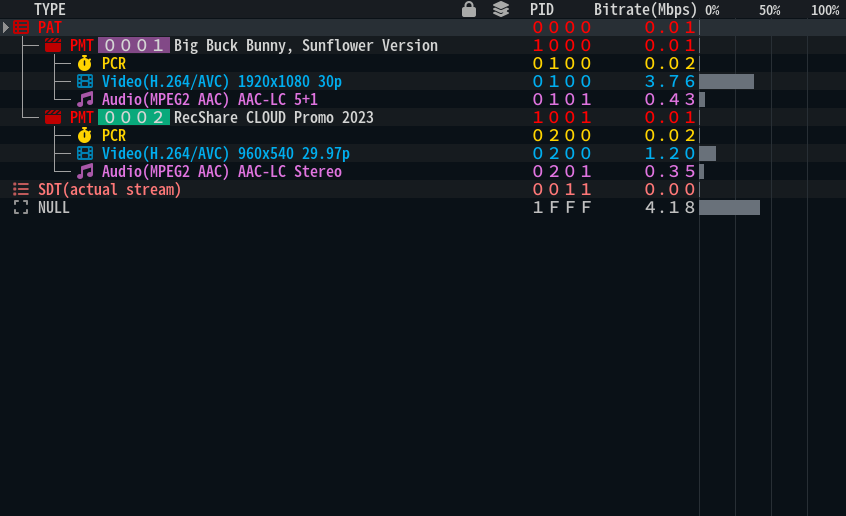

PID Tree
Displays the structure of the transport stream in a tree format.
Screen Items
| Item | Description |
|---|---|
| TYPE | Display the packet type. The packet type is determined by table_id and stream_type described in PMT. |
| Displays whether scrambled or not. If scrambled, the letter will be displayed. | |
| When the layer information of ISDB-T is added, display the assigned hierarchy. | |
| PID | Display the packet ID. You can select decimal or hexadecimalin the setting. |
| Bitrate | Display the bit rate of the target packet. |
Operation
| Item | Description |
|---|---|
| Packet Analysis | Perform packet analysis of the packet selected by the cursor. |
| Section Analysis | Perform section analysis of the packet selected by the cursor. |
| Decode | Set the service associated with the packet selected by the cursor as the target for decoding. No video is displayed when selected as decoding target for scrambled services. |
| Format Select | Switch the display scale of the bit rate occupancy bar graph. |
| PAGE | Scroll the display up one page. |
| PAGE | Scroll the display down one page. |
